Asus ROG Thor 1000W Platinum II EVA Edition Gaming Power Supply
SPECIFICATIONS
| PFC Type | Active PFC |
| Dimensions | 190 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| Thermal Features | ROG Thermal Solution |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 83A 0.3A 3A |
| Combined Load | 125W 125W 996W 3.6W 15W |
| Total Output | 1000W |

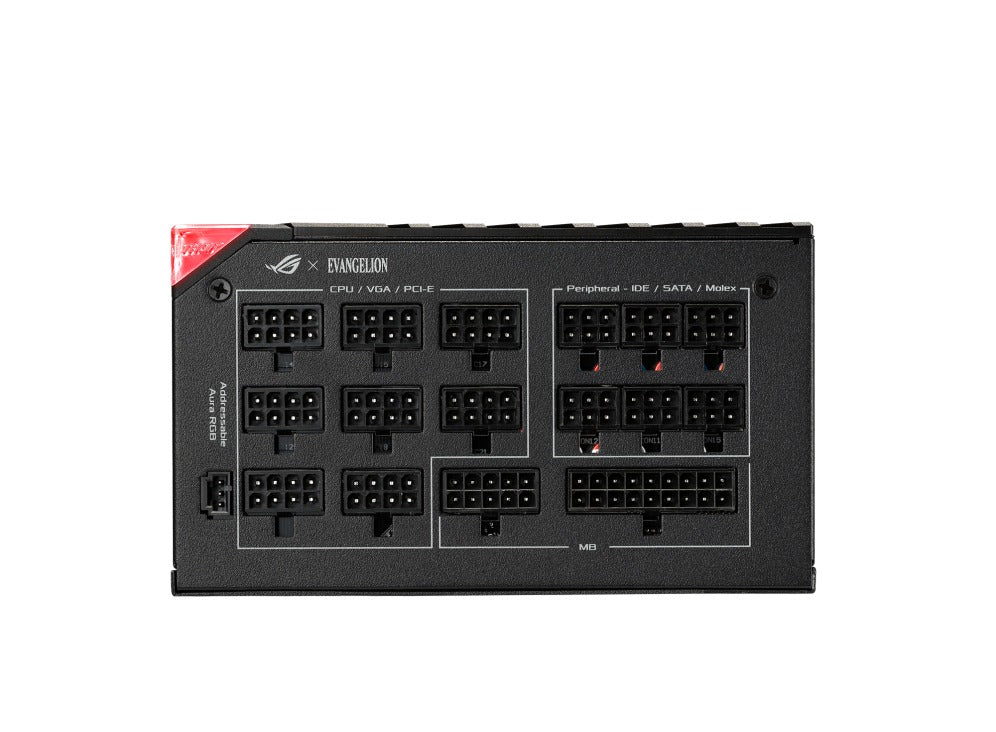

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 8 SATA x 12 Peripheral x 6 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) 12-pin PCIE Cable x1 (750mm) PCIE 1-to-1 Cable x4 (675mm) PCIE 1-to-2 Cable x2 (675+75mm) SATA 1-to-4 Cable x3 (400+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) Addressable RGB Cable x1 (800mm) ROG sticker x 1 ROG cable tie x 6 Sleeved Cable Combs (6-pin) x 4 Sleeved Cable Combs (8-pin) x 10 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Weight | 2.35 |
| AURA SYNC | ARGB |
| Cybenetics Noise Level Certification | A++ |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
