Keychron Q5 Max QMK/Via Fully Assembled With Knob RGB Backlit Hot-Swappable 96% Wireless Custom Mechanical Keyboard - Shell White (Red Switch, Banana Switch)
The Keychron Q5 Max is a custom mechanical keyboard with a 2.4 GHz wireless connection and 1000 Hz polling rate, offering premium sound quality and a double-gasket design. Crafted from 6063 aluminum, it features an ARM Cortex-M4 chip with 256K Flash for developers. The Q5 Max is easy to assemble and customize, offering seamless multitasking across devices.
Features:
- Double-Gasket Design
- QMK/VIA Support
- 1000Hz Polling Rate
- Enhanced Acoustic Foams

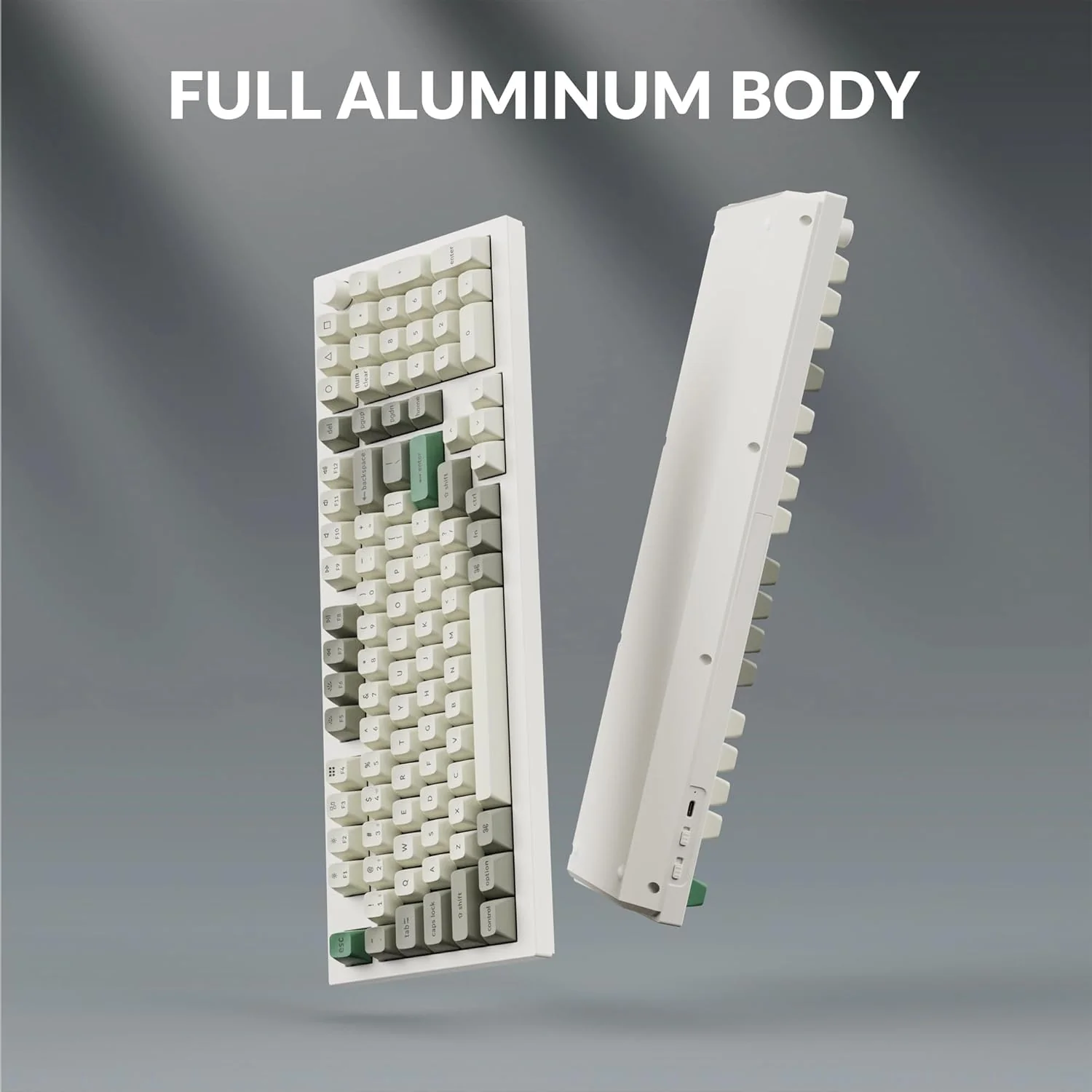

- CNC Aluminum Body
- 2.4GHz & Bluetooth
- Mac & Windows
- Double-Shot PBT Keycaps
Specification:
| Width | 145 mm |
|---|---|
| Length | 408 mm |
| Front Height | 22.6 mm (without keycaps) |
| Back Height | 35.8 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 5.2° |
| Weight | 2215 g ± 10 g (Fully Assembled version) |
| Body Material | Aluminum |
| Plate Material | PC |
| Keycap | KSA double-shot PBT keycaps, not shine-through (Fully Assembled version) / OSA side-printed double-shot PBT keycaps (Fully Assembled version) |
|---|---|
| Switch | Gateron Jupiter (Fully Assembled version) |
| Stabilizer | Screw-in PCB stabilizer |
| Backlight | South-facing RGB LED |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Polling Rate | 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth) |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Battery | 4000 mAh Rechargeable li-polymer battery |
|---|---|
| Wireless Working Time (Backlit off) | Up to 180 hours (Lab test result may vary by actual use) |
| Wireless Working Time (RGB) | Up to 100 hours (Lowest brightness) |
| Bluetooth Version | 5.1 |
| Compatible System | macOS/Windows/Linux |
| Connectivity | 2.4 GHz / Bluetooth / Type-C wired |
| Bluetooth Device Name | Keychron Q5 Max |
| Operating Environment | -10 to 50℃ |
