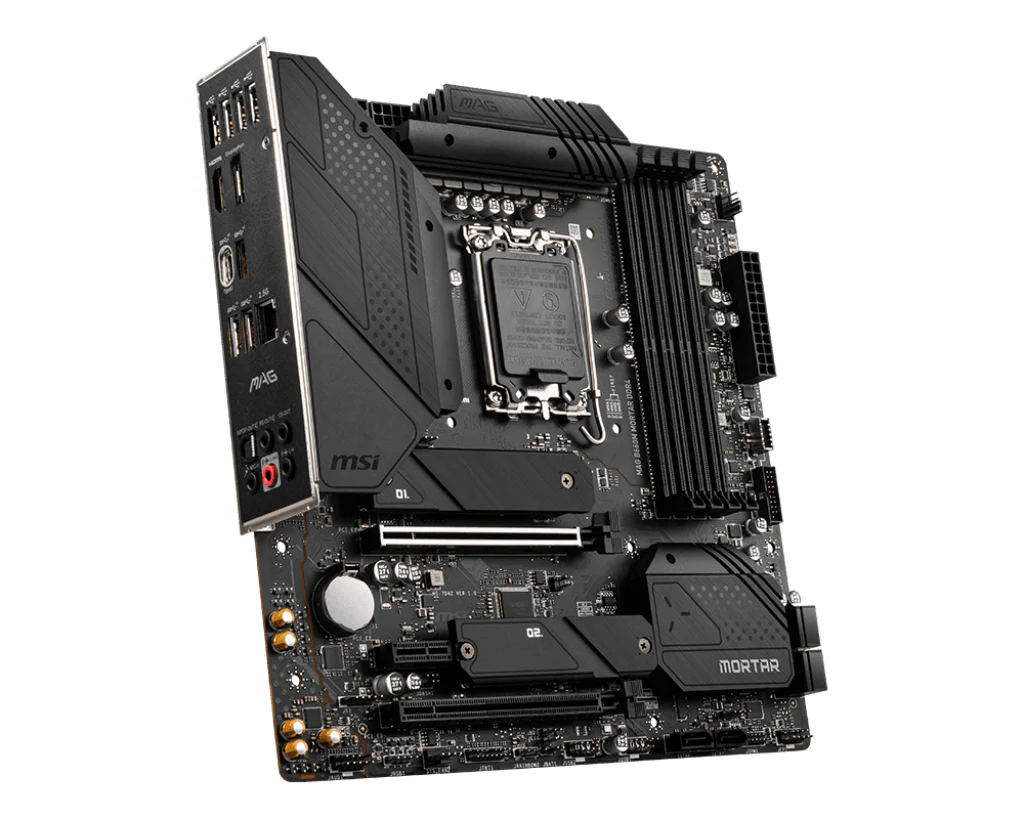

MSI MAG B660M Mortar DDR4 Motherboard
MAG B660M MORTAR WIFI DDR4
- LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN deliver the best online experience without lag
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Specifications
|
SOCKET |
1700 |
|
CHIPSET |
Intel® B660 Chipset |
|
MEMORY CHANNEL |
Dual |
|
DIMM SLOTS |
4 |
|
MAX MEMORY (GB) |
128 |
|
PCI-E X16 |
2 |
|
PCI-E X1 |
1 |
|
SATAIII |
6 |
|
M.2 SLOT |
2 |
|
RAID |
0/1/5/10 |
|
WIFI & BLUETOOTH |
Intel® Wi-Fi 6 module |
|
USB 3.2 PORTS (FRONT) |
1(Gen 2, Type C), 2(Gen 1, Type A) |
|
USB 3.2 PORTS (REAR) |
1(Gen 2x2, Type C), 3(Gen 2, Type A) |
|
USB 2.0 PORTS (FRONT) |
4 |
|
USB 2.0 PORTS (REAR) |
4 |
|
AUDIO PORTS (REAR) |
Realtek® ALC1200 |
|
DISPLAYPORT |
1 |
|
HDMI |
1 |
|
DIRECTX |
12 |
|
CROSSFIRE |
YES |
|
OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
FORM FACTOR |
mATX |
Original: $156.04
-70%$156.04
$46.81Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MAG B660M MORTAR WIFI DDR4
- LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN deliver the best online experience without lag
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Specifications
|
SOCKET |
1700 |
|
CHIPSET |
Intel® B660 Chipset |
|
MEMORY CHANNEL |
Dual |
|
DIMM SLOTS |
4 |
|
MAX MEMORY (GB) |
128 |
|
PCI-E X16 |
2 |
|
PCI-E X1 |
1 |
|
SATAIII |
6 |
|
M.2 SLOT |
2 |
|
RAID |
0/1/5/10 |
|
WIFI & BLUETOOTH |
Intel® Wi-Fi 6 module |
|
USB 3.2 PORTS (FRONT) |
1(Gen 2, Type C), 2(Gen 1, Type A) |
|
USB 3.2 PORTS (REAR) |
1(Gen 2x2, Type C), 3(Gen 2, Type A) |
|
USB 2.0 PORTS (FRONT) |
4 |
|
USB 2.0 PORTS (REAR) |
4 |
|
AUDIO PORTS (REAR) |
Realtek® ALC1200 |
|
DISPLAYPORT |
1 |
|
HDMI |
1 |
|
DIRECTX |
12 |
|
CROSSFIRE |
YES |
|
OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
FORM FACTOR |
mATX |
